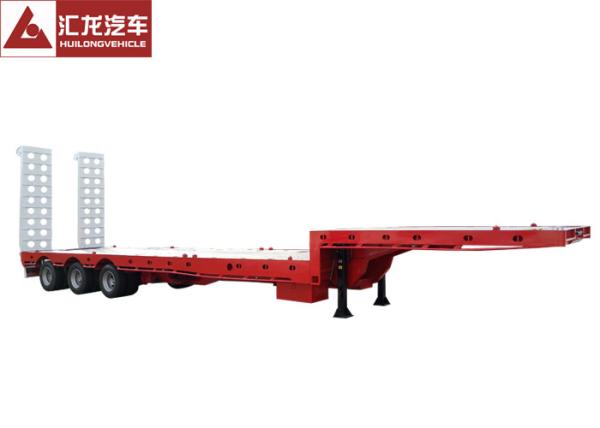

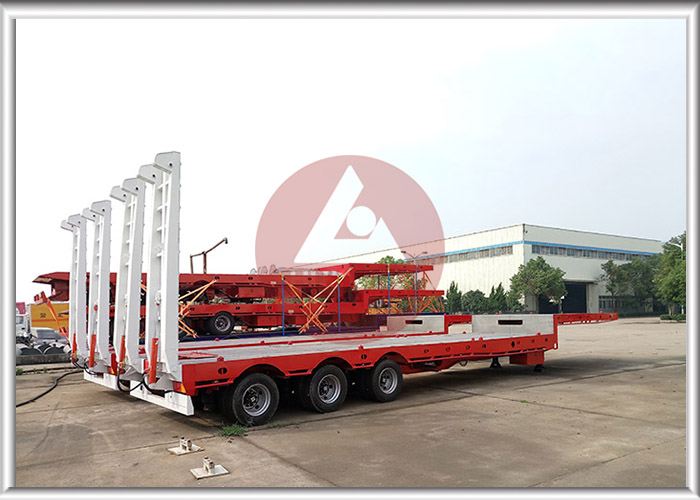

Integrative Heavy Duty Gooseneck Trailer Modern Industrial Design Strengthened Vertical Beam
Description:
• Key Application
The drop deck low bed trailer can transport a great deal of mechanical equipments covering large devices, construction machinery (e.g. excavator, bulldozer, loader, and crane), power system etc. Its 3 axles allows for the 60 tons of cargoes.
• Integrative Structure
Fences are not installed on the cargo platform. Beam-through and drop deck structures are applied to the frame and the longitudinal beam respectively. The crossbeam and the longitudinal beam are integrally welded to support the load and reduce the wallop.
Advantages:
• Low Chassis
The low bed trailer has a low chassis for stability and safety of driving. Besides, the drop deck trailer can transport super-heavy cargoes and drive through obstacles with limited height.
• Modern Industrial Design
The low bed trailer is designed with advanced 3D softwares. The bearing surface of the frame can meet the transportation of miscellaneous special goods in line with customers' requests.
• Strengthened Vertical Beam
The submerged arc welding is applied in the vertical beam to improve the welding quality. The ladder and I-beam structure improve the stiffness.
Specifications:
| Tare Weight |
About 8 Ton |
| Max Loading Capacity |
60Ton |
| Wheel Base |
1310 (mm) |
| Tyre Specifications |
10.00R20 / 12 |
| Tyre Amount |
12 tyres |
| Axle |
3 Axles |
| Axle-load |
13 Tonnage |
| King Pin |
2’ & 3.5’changeable |
| Landing Leg |
28ton with 80Tons static capacity |
| Pieces of Leaf-Spring |
10pcs |
| Suspension |
Heavy Duty Leaf Spring |
| Dimensions |
12500x2500x1500 (mm) |
| Material |
Q345B manganese plates; automatic submerged arc welded;
Height 500mm, through cross beams Q235;
Floor, 3mm management plate
|
| Brake System |
Dual line braking system with automatic air chambers |
| Brake Air Chamber |
Four double and two single chamber |
| Electrical Sys |
24V, 7 core socket, lights according to European standards |
| Color |
Any color will be available |
| Accessory |
One tooling box with a set of standard trailer tool |
| Spare Tire Carrier |
1 set |
| Gallery |
 |
