Dangerous Liquid Chemical Delivery Truck Sand Blasting Painting Safe Driving

Name: Dangerous Liquid Chemical Delivery Truck Sand Blasting Painting Safe Driving
Brand: Huilong
Price: 1 USD

Dangerous Liquid Chemical Delivery Truck Sand Blasting Painting Safe Driving Manufactures

Brand Name : Huilong

Model Number : Chemical Tank Trailer

Certification : ISO9001

Place of Origin : Suizhou, China

MOQ : 1 unit

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 units per month

Delivery Time : 4~6 weeks

Packaging Details : in nude or by wax

Body Material : Carbon Steel

Internal Lining : 16 mm Plastics

Safety Valve : 1 Set

Axle Series : FUWA

Tire Type : Tubeless Tire

Painting Tech : Sand Blasting

Contact Now

Dangerous Liquid Chemical Delivery Truck Sand Blasting Painting Safe Driving

Description:

• Core Application

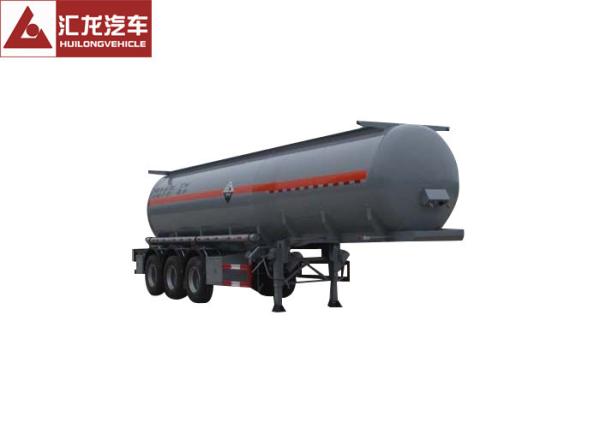

The chemical tank trailer is also the dangerous liquid tank trailer used in road transport. Key components include tank, loading and unloading system, safeguard system etc. A diversity of corrosive liquid with different concentration can be transported, covering sulfuric acid, hydrochloric acid, nitric acid etc.

Advantages:

• Chemical Pump

The chemical liquid trailer is equipped with the high-quality chemical pump, which is stable, sealed and easily repaired.

• Durable Components

Valves and linkers made of stainless steel are durable and hermetically-sealed.

• Safe Driving

ABS device is equipped to monitor the whole transportation process. PVC and ESD(electro-static discharge) facilities are also installed.

• Wave Obstructors

All-plastic wave obstructors are set in the tank to cushion the shock to the cap during the urgent brake or rapid starting.

Specifications:

Main Dimensions
Overall Dimension	12100x2500x3300
Tare Weight	11900
Loading Capacity	45Ton
Tank Body
Shape	Mono block Cylinder
Total Volume (m³)	32cmb
Tanker Body Material	6 mm carbon steel
End Plate	6 mm carbon steel
Inner Lining	16 mm plastics
Manhole Cover	∮500mm, 2 sets with 2 breather valve Steel manhole cover with plastic lining
Discharging Valve	2 sets ∮100mm discharging valve, stainless made
Safety Valve	1 set of safety valve
Discharging Pipe	4” rubber hose, 2pcs, 6m long
Chassis
Axle	3 pcs FUWA 13Ton axles
Landing Gear	JOST brand Two-speed; manual operating; heavy duty landing gear
King Pin	JOST brand 2” bolt-in king pin
Suspension	Mechanical suspension with leaf spring
Braking System	WABCO RE 6 relay valve; T30/30 Spring brake chamber; 40L air tanks
Wheel Rim	9.0-22.5 wheel rim, 12 pieces
Tire	12R22.5 tubeless tire , 12 pieces
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box, one spare tyre and carrier
